IEC 62056-21 Optical Interface

This article discusses an optical interface designed for communication with various devices using the IEC62056-21 standard, commonly utilized with different types of meters, though not limited to them.

INFO

The interface can be purchased on Tindie

Features

  • Compatible with devices using the IEC62056-21 interface
  • Designed for pinout compatibility with the Wemos Mini layout
  • Supports both 3.3V and 5.0V logic levels
  • Operates with a power supply range of 3.3V to 5V

Pinout

Pins without a label are not connected

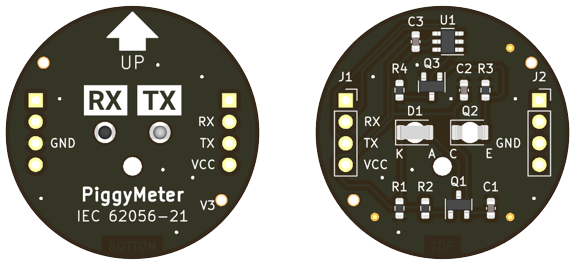

PiggyMeter pinout

Specification

  • Power: 3.3V-5V
  • Logic level: 3.3V or 5V
  • Infrared wavelength: 850-940nm
  • Transmission: half-duplex
  • PCB
    • Diameter: ⌀30mm ±0.2mm
    • Material: FR4
    • Color: Black
    • Thickness: 1.6mm
    • Surface Finish: Lead Free

PCB Dimensions

PCB Dimensions

Pinout compatible with

  • ESP8266 D1 mini
  • ESP32 D1 mini
  • ESP32 S2 mini
  • ESP32 C3 mini

The interface on top of ESP32 board

How to connect

Do not cross RX/TX signals.

Optical InterfaceMicrocontroller
VCC3.3V or 5V
GNDGND
TXTX
RXRX

Arduino

Arduino Uno connection diagram

Before uploading the sketch disconnect TX and RX lines.

Raspberry Pi

Raspberry Pi connection diagram
